Materials: Solid bars of ferrous and non-ferrous metals including brass, bronze, copper, nickel silver and various grades of low carbon steels.

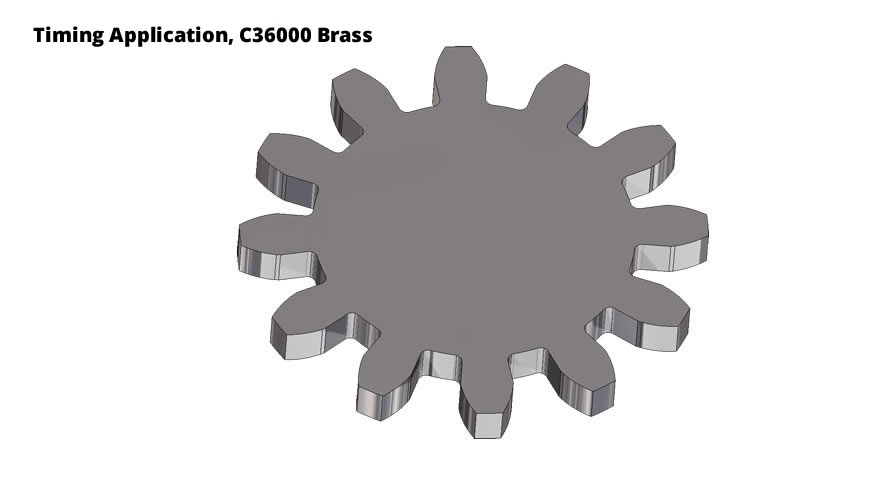

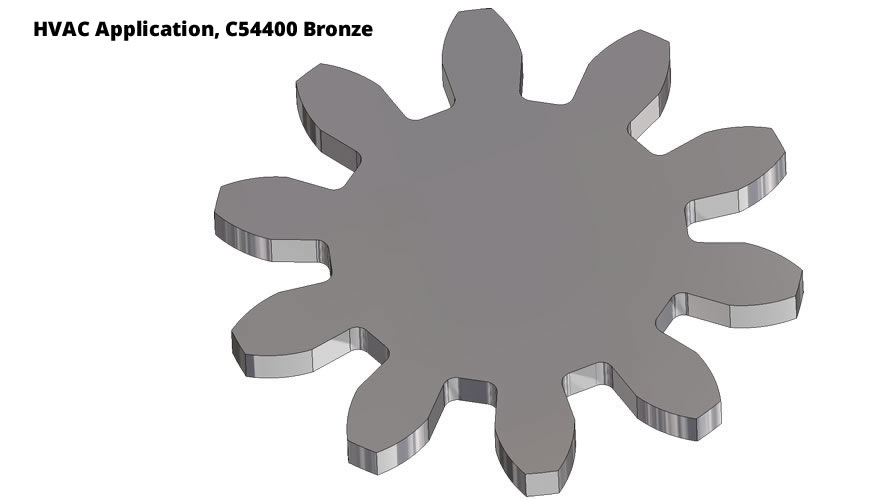

Pinion rod: We are tooled for numerous pinion rod items within the following parameters .100” to 1.250” outside diameter, 12 to 80 pitch, in any number of teeth, 14-1/2 deg pa or 20 deg pa standard involute tooth profiles. Special tooth forms and metrics profiles can also be provided.

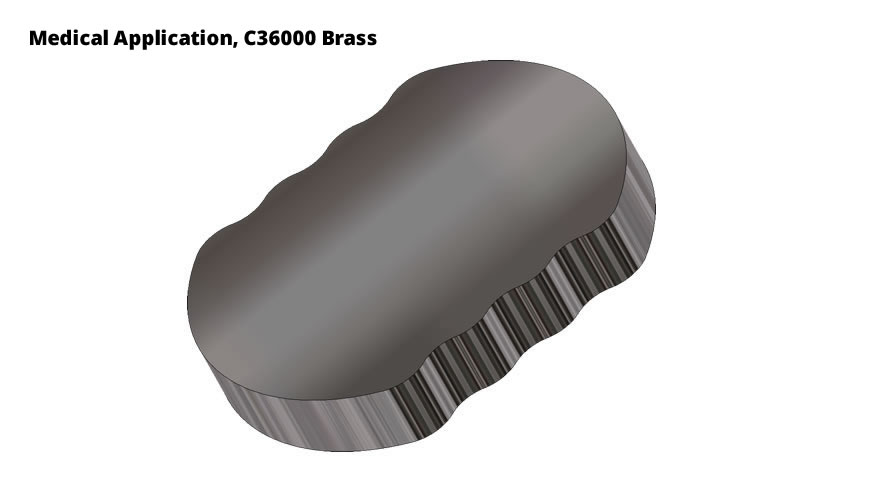

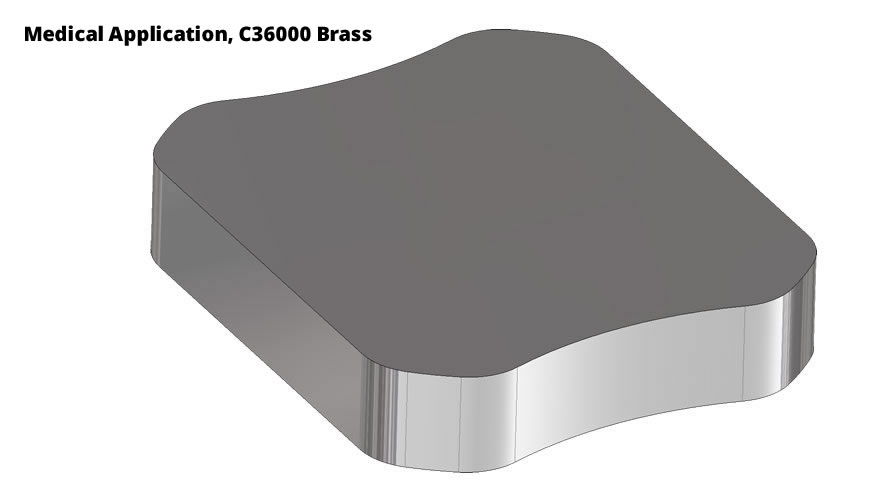

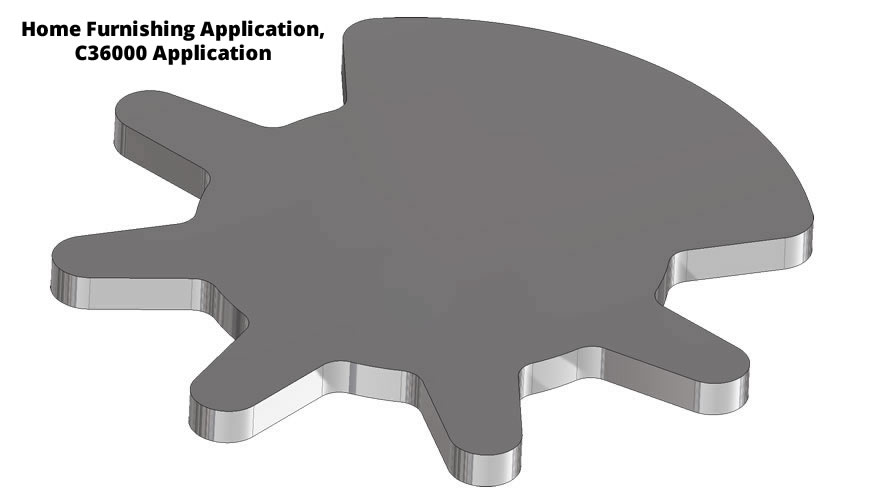

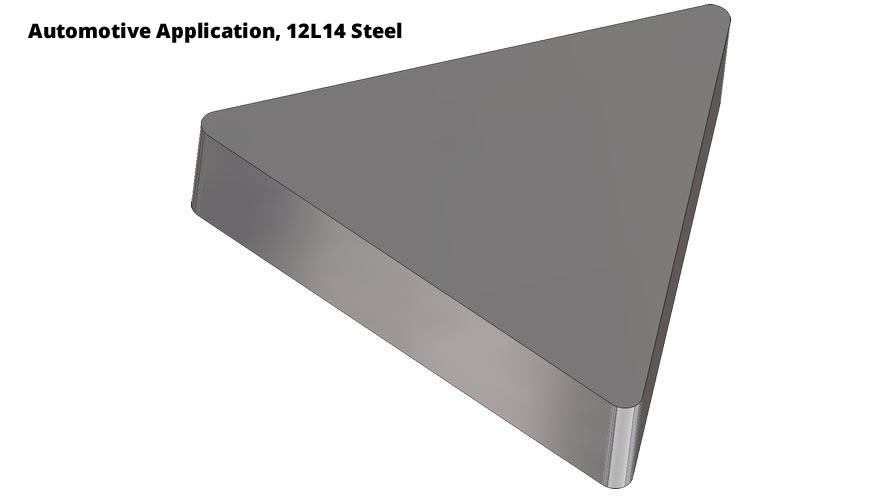

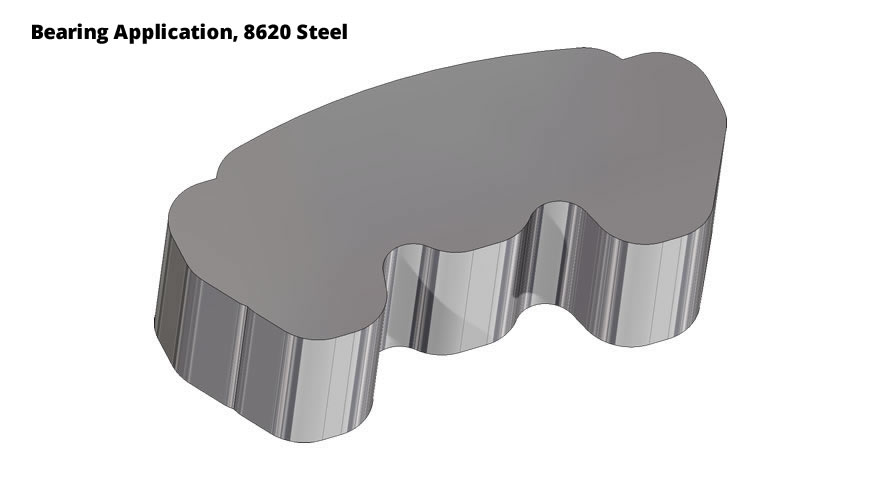

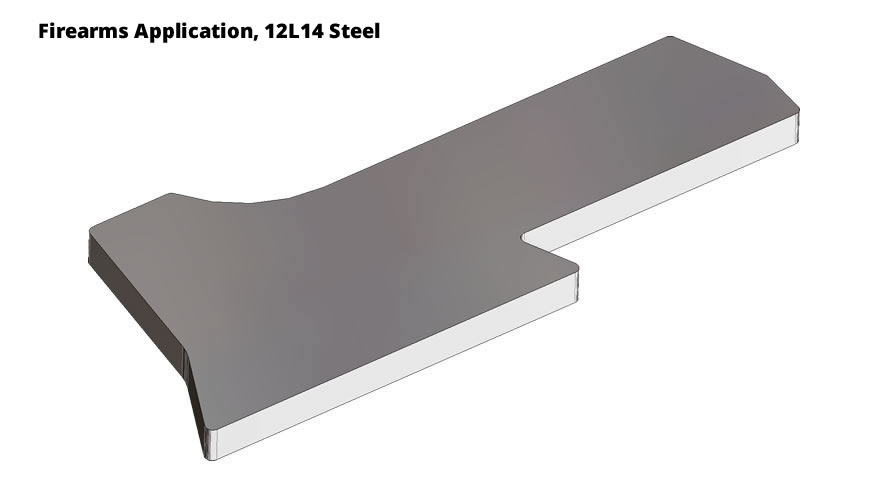

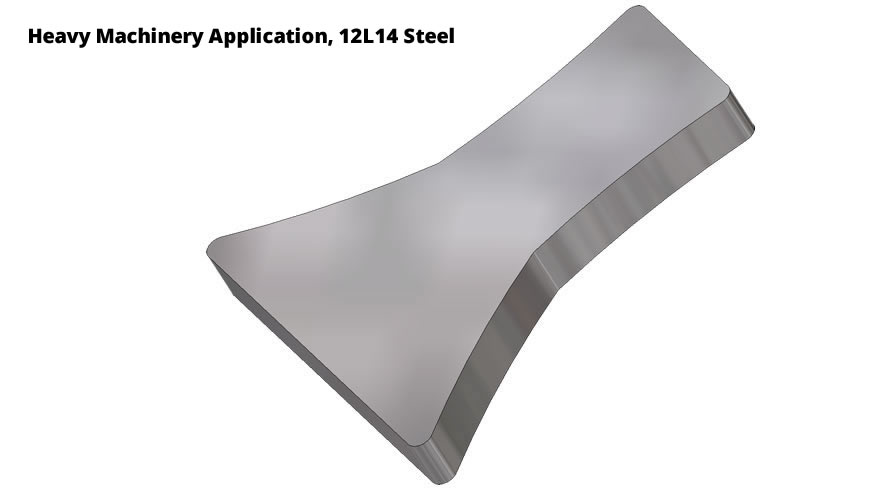

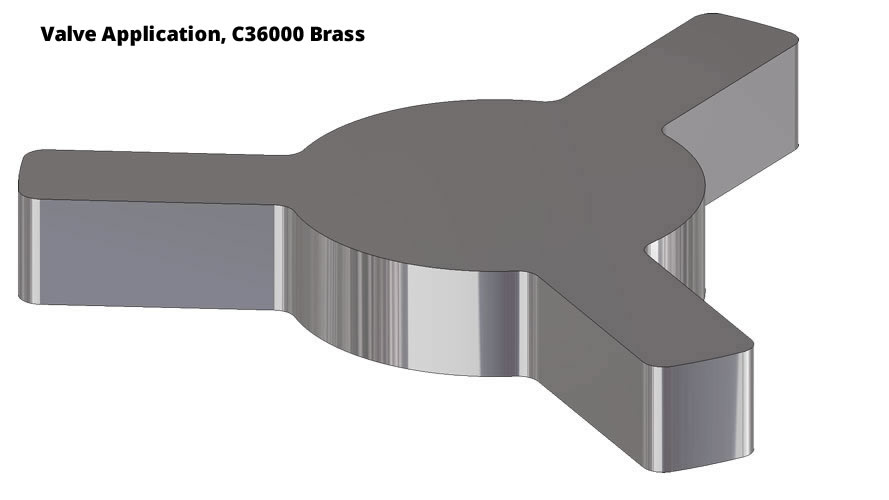

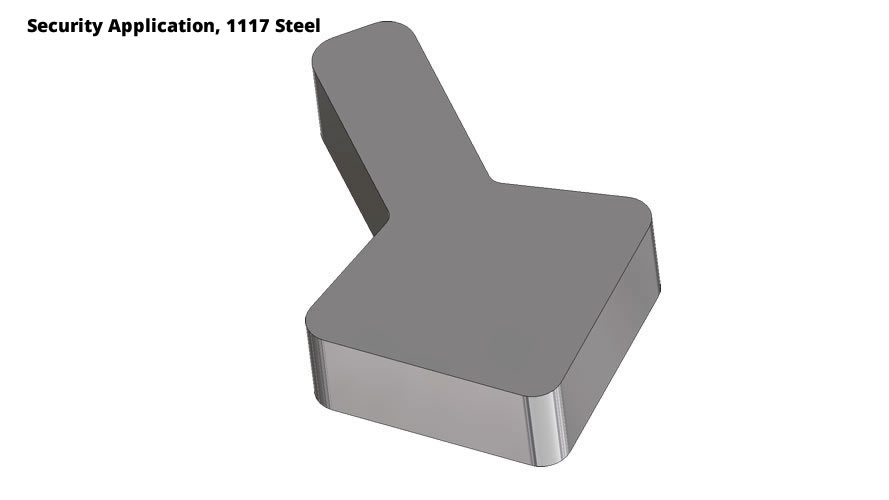

Custom shapes: Shapes can be produced to almost any configuration and specification, dependent on customer requirements. The major parameter is that the overall size must fit within approximately a 1.250” circle.
Corner radii: .005” to .007” nominal (closer if required).
Tolerance: .002” nominal and as close as .0005” depending on configuration.
Surface finish: Surface finish is provided in the 10 to 18 micro inch range.
Finished form: Material is shipped in straight bar lengths or coil form.
Packaging: Material is provided in wooden boxes and shrouded in plastic to insure safe transport to your location. Special packaging requirements can be accommodated.
Chemical certification: Chemical certification is available upon request for all material shipped from Utility MFG.
